Castellini Autoclaves
Type B autoclaves manufactured in Italy by Cefla. Three ranges — Platinum, Plus and C — across 17, 22 and 28-litre chamber sizes. CE 0051 medical device.
Authorised UK Cefla dealer
Direct supply, full warranty, genuine parts
HTM 01-05 & EN 13060 compliant
Meets UK decontamination & Type B sterilisation standards
UK service & support
Engineer visits, phone support, in-house spares
Engineer install Available
Professional installation, validation & user training
Finance & leasing available
Flexible payment options for UK practices
A closer look
Meet the C-series.
Three machines. One external footprint, the same five-cycle programme, the same Cefla build quality. What changes is the touchscreen, the connectivity, and the level of detail.
Flagship
C Platinum
Mid-range
C Plus
Entry

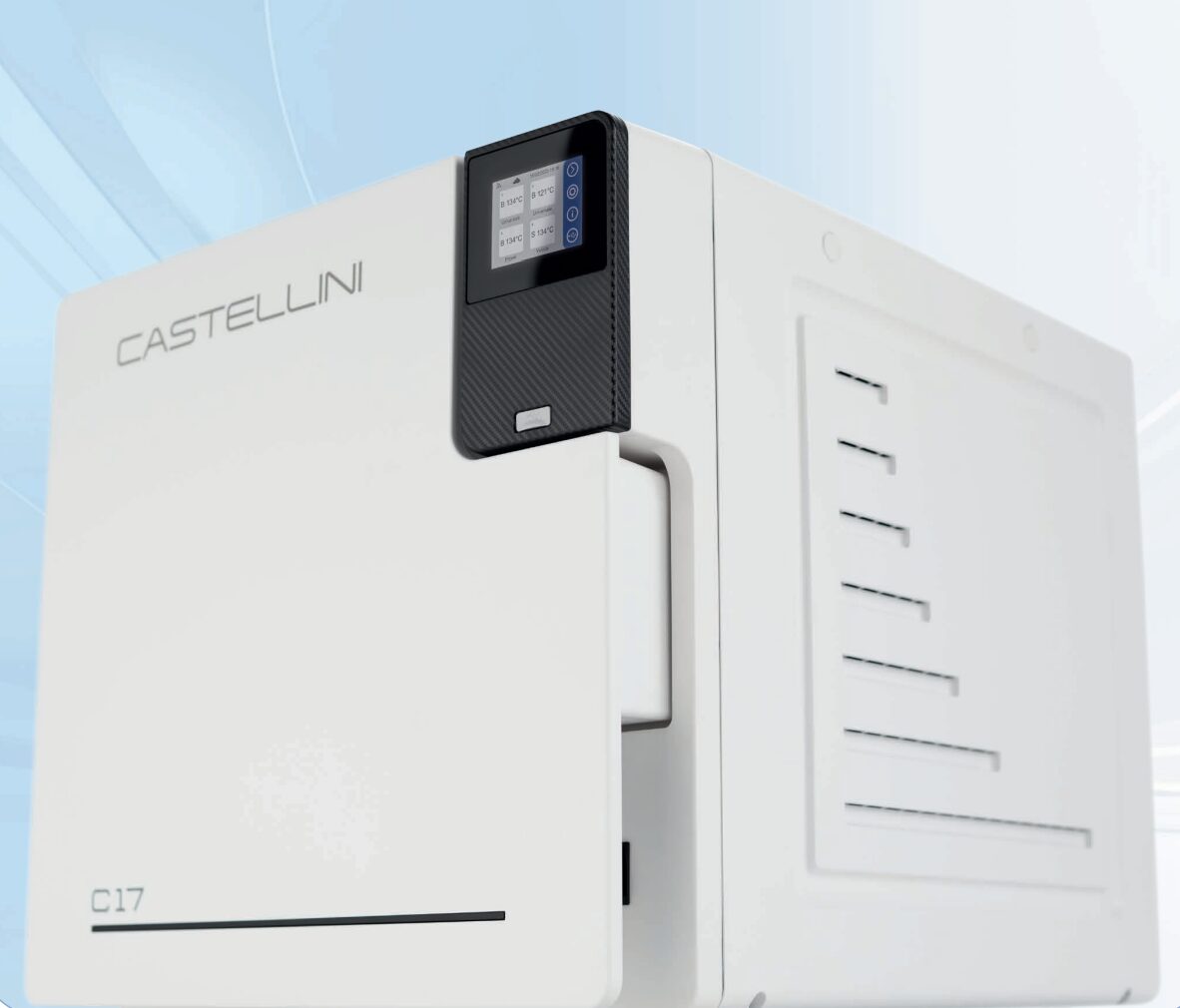

C Series

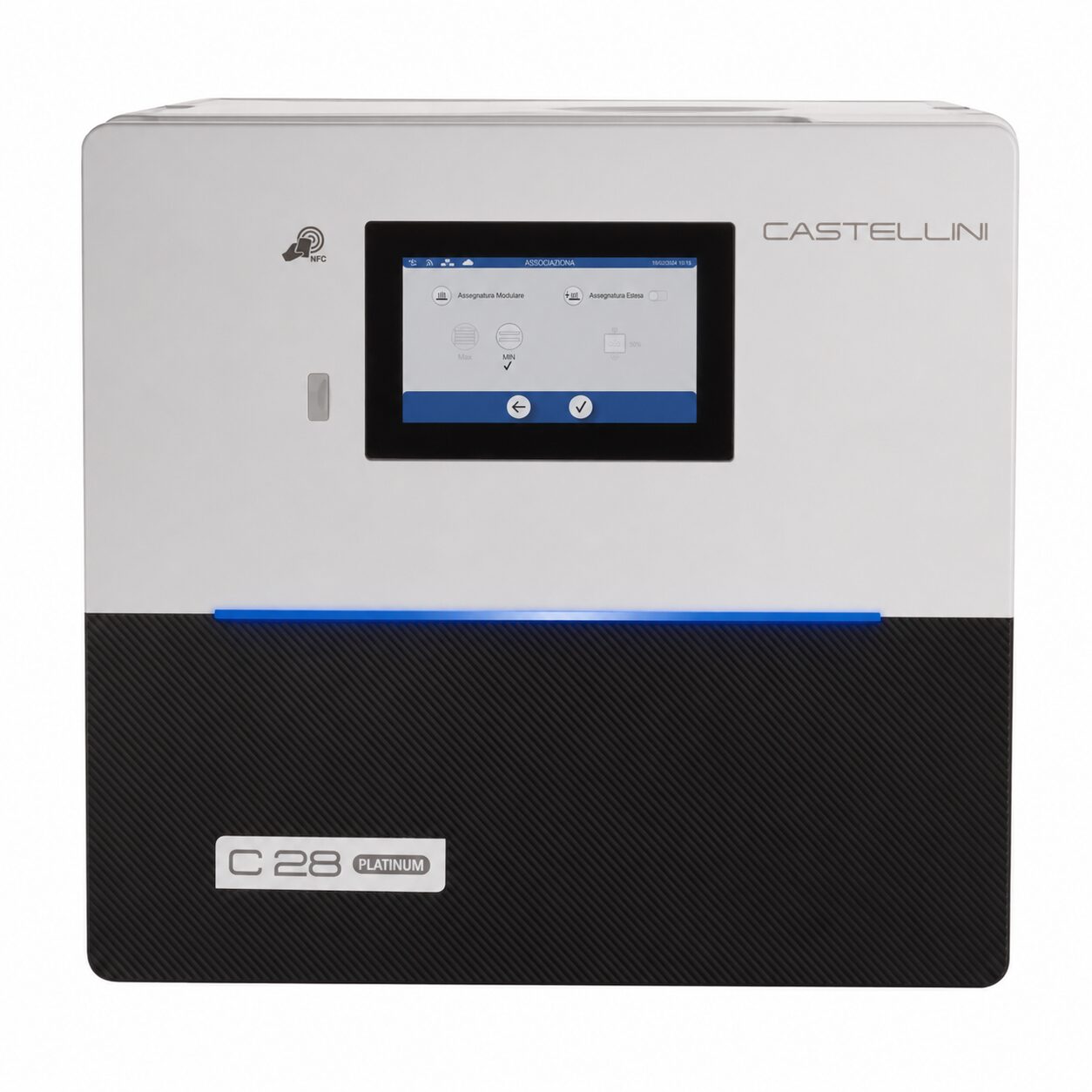

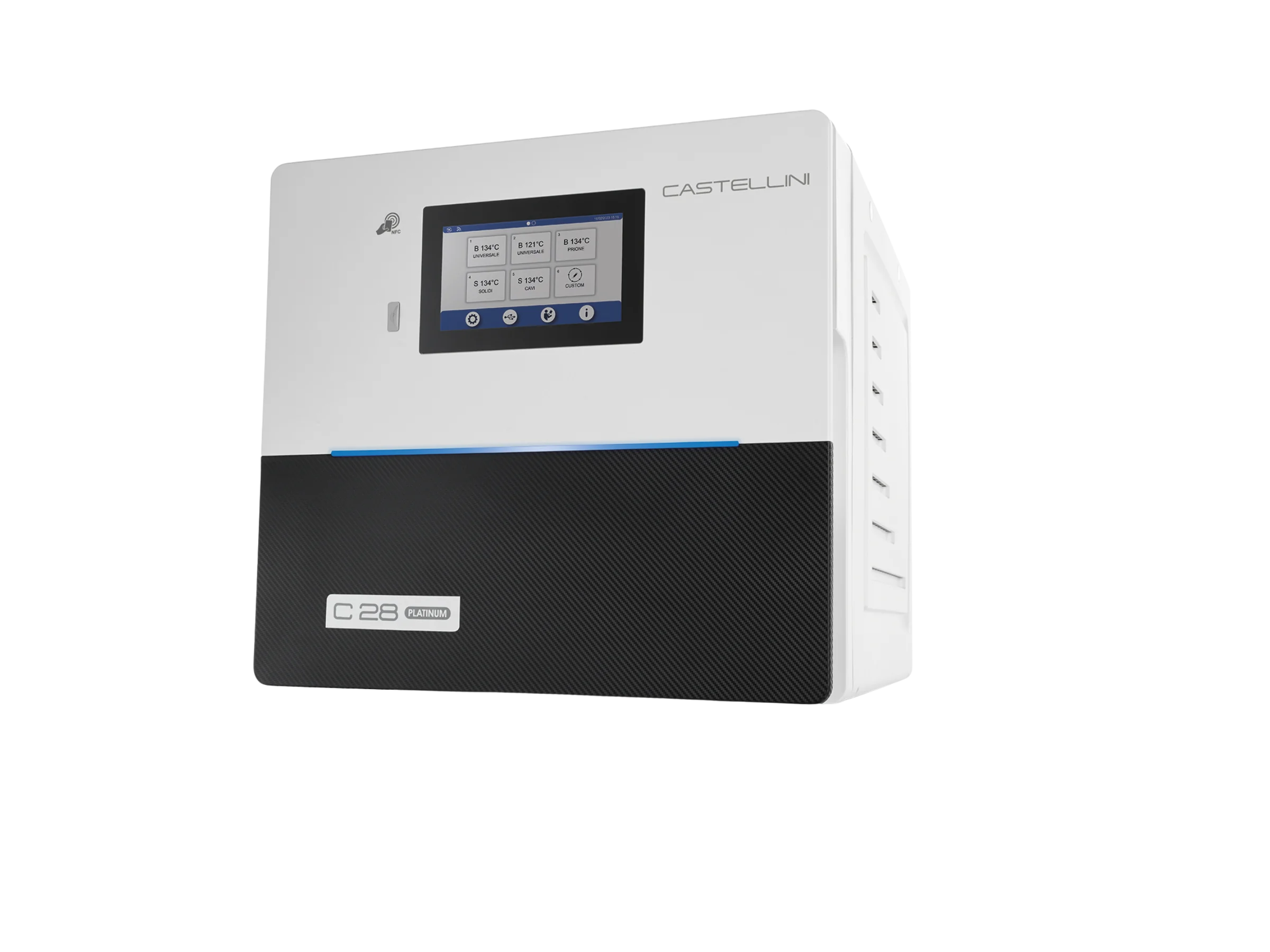

C Platinum
50 sterilisation cycles from 5 litres of mains water.
Water recycling, 7-inch touchscreen, Modular Drying — the most efficient autoclave Castellini make.

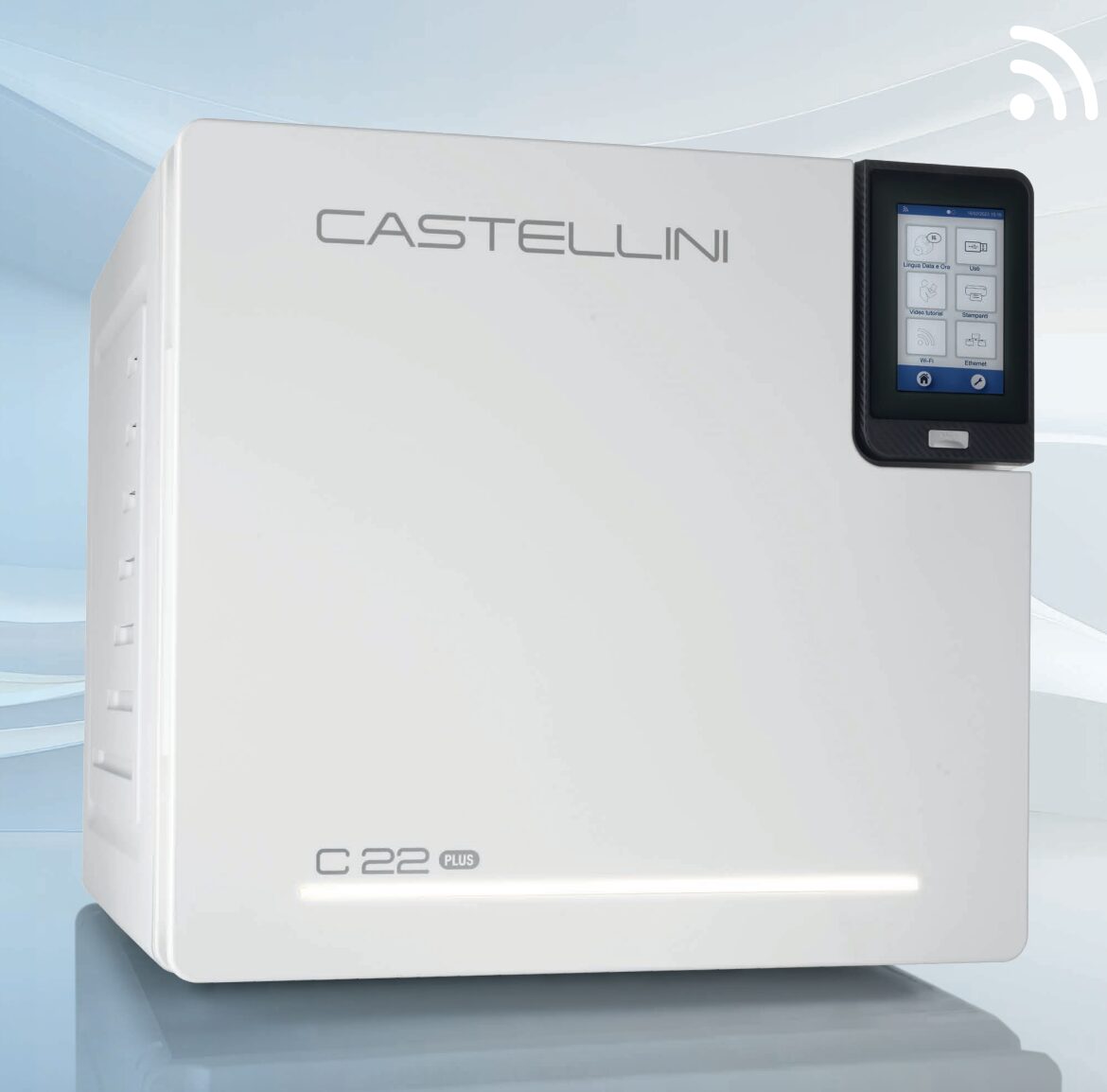

C Plus
B-cycle in 31 minutes. Connected. Compact.
Modular Drying and full Wi-Fi connectivity, in the same external footprint as Platinum.
How the C range differs
Three autoclaves, three workflows
Same external dimensions and the same five sterilisation cycle types across all three. The differences sit in water management, drying technology, screen, and connectivity.
| C Platinum | C Plus | C Series | |
|---|---|---|---|
| Display | 7" colour with video tutorials | 5" capacitive with tutorials | 3.2" touchscreen |
| Modular Drying | ✓ | ✓ | — |
| B-cycle (17L) | 31 min | 31 min | 42 min |
| Water recycling | 50 cycles / 5L | — | — |
| Demineralisation filter | Integrated | Integrated | Optional accessory |
| LED status bar | ✓ | Front status panel | — |
| Wi-Fi + Ethernet | Integrated | Integrated | Built-in ports |
| SterilConnect app | ✓ | ✓ | — |
| Cloud (Di.V.A.) | Standard | Standard | Optional |
| Traceability labels | QR code or Barcode | QR code or Barcode | Barcode (via printer) |
| Cycle memory | Internal + Cloud | Internal + Cloud | 10,000 cycles internal |
| Weights (17 / 22 / 28L) | 48 / 51 / 52 kg | 47 / 50 / 51 kg | 46 / 49 / 52 kg |
All three models share: 500 × 490 × 600 mm external dimensions · 6L tank · 2300W at 220/240V · five cycle types (B / S / Prion B / Vacuum / Helix) · custom cycle option · CE 0051 medical device · manufactured by Cefla, Italy.
Spread the cost
Finance calculator
Indicative monthly payments on a typical 7.9% APR business finance arrangement. Final terms subject to credit check and signed agreement.
Estimated monthly payment
£0
+ VAT
per month
Platinum 17 · 36 months
Total over term: £0 + VAT
ApplyIndicative monthly payments only — all figures shown exclude VAT. Representative APR 7.9%. Subject to status and credit approval. Final figures will be confirmed by your finance provider and may vary based on individual circumstances. GQ Decontamination acts as an introducer to third-party finance providers.
Frequently asked
What buyers ask us
Are these compatible with UK practice power supplies?
Yes. All three Castellini models run on 220/240V at 50Hz, 2300W rated power. They plug into a standard UK 13A socket and don't require a dedicated supply.
What's the difference in B-cycle time across the three models?
At 17 litres, the standard B-cycle on C Platinum and C Plus completes in 31 minutes thanks to Modular Drying, which adapts the drying phase to the load. The C Series uses standard drying — its B-cycle takes 42 minutes at 17L, 46 minutes at 22L, and 56 minutes at 28L.
For practices running multiple cycles per day, that's a meaningful productivity difference over the working week.
Do all three models support Prion-cycle sterilisation?
Yes. All three Castellini autoclaves include a 134°C Prion B cycle (18-minute sterilisation hold) plus the standard B / S / Vacuum / Helix and B&D test cycles. There's also a Custom cycle that lets you set temperature, sterilisation time and drying time within defined ranges.
How much water does the recycling system on C Platinum actually save?
C Platinum uses two filters working together: a demineralisation filter on the main reservoir, and a recirculation filter on the secondary reservoir that purifies used water for reuse. The result is 50 sterilisation cycles from just 5 litres of mains water.
This is unique to C Platinum within the range — C Plus uses an integrated demineralisation filter (still mains-water fed, but no recycling), and the C Series uses mains water with optional demineralisation accessories.
What chamber capacities are available, and how many trays do they hold?
All three models are available in 17, 22, and 28-litre chamber sizes. External dimensions are identical at 500 × 490 × 600 mm — installation footprint doesn't change with chamber capacity.
The C Series specifies 5 trays for 17L and 22L models, 6 trays for 28L. An optional Modular Tray Holder accessory adds three pairs of shelves for bulkier loads on all three ranges.
How does cycle reporting and traceability work?
C Platinum and C Plus connect via integrated Wi-Fi or Ethernet to Castellini's Di.V.A. Cloud platform, with the SterilConnect app providing real-time monitoring from any mobile device. Both support QR code or Barcode label printing for patient-level traceability via the optional MyTrace software.
The C Series saves up to 10,000 cycles to internal memory, downloadable as PDF via the front USB port. The supplied DataSter software automates downloads to a network folder. Wi-Fi/Ethernet connectivity is built in, with Cloud platform integration as an optional upgrade.
Can you install and validate the autoclave for us?
Yes. We strongly recommend professional installation for any new autoclave — it covers initial validation, user training, and confirms the device is operating to spec from day one. Contact us for an installation quote based on your practice location and setup.
Ready to choose your Castellini?
Order direct from the range above, or talk to us about installation, training, and finance options. We're an authorised Cefla dealer with a UK service network.
